m2-formal-system

We saw in the previous entry, that a collection of formation-rules (the formal-grammar) indicate which formulas are well-formed and form a formal-language. Now we will go a step further by marking some of the wffs of a given formal-language $\mathcal{L}$ as theorems. This is done again by a collection of rules, known as inference-rules. The collection of inference-rules that we decide to use is known as an inference-system. Unlike a formal-grammar, an inference-system requires a starting point. This is, it marks wffs as theorems using previous theorems (action that is known as “to infer a theorem”). To avoid this recursion, a collection of wffs (known as axiomatic-system) is chosen to be arbitrarily marked as theorems in order to start the process. Each of the wffs of the axiomatic-system is called an axiom. All wffs that can be marked as theorems depend on the formal-language ($\mathcal{L}$), the inference-system ($\mathcal{I}$), and the axiomatic-system ($\mathcal{S}$). The formal-language ($\mathcal{L}$) defines all the wffs that can be marked as theorems, the inference-system ($\mathcal{I}$) specifies the rules for marking them, and the axiomatic-system ($\mathcal{S}$) provides the initial theorems to begin the process. This triplet is then very important as a whole and that is why it receives a name, i.e. a formal-system ($\mathcal{F}=(\mathcal{L},\mathcal{I},\mathcal{S})$). Once we choose a formal-system $(\mathcal{F})$, the collection of wffs of $\mathcal{L}$ that will be theorems is automatically defined. This collection is known as the theory.

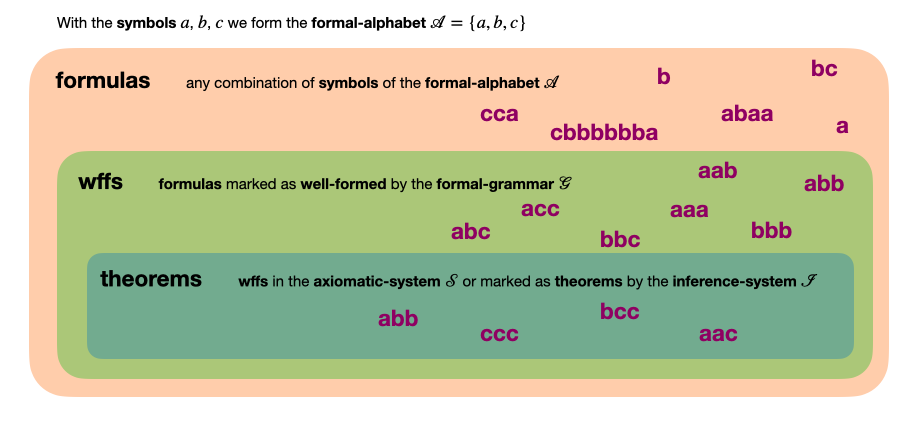

In the previous entry, we saw that the formal-language $\mathcal{L}$ is formed by all the formulas that can be created as combinations of symbols of the formal-alphabet $\mathcal{A}$, and are marked as well-formed-formulas (wffs) by the formation-rules of the formal-grammar. In the image above, the formal-language $\mathcal{L}$ (defined by $(\mathcal{A},\mathcal{G})$) is formed by all the formulas (in purple) that are inside the green area, i.e. all the formulas that are marked as well-formed using the formal-grammar $\mathcal{G}$ (all the wffs) are the 10 formulas $aaa,aab,aac,abb,abc,acc,bbb,bbc,bcc,ccc$ (check the example in m1-formal-language). Then we if we choose an axiomatic-system $\mathcal{S}$ (i.e. we chose some of these wffs (e.g. $abb$ and $ccc$) to be marked as theorems), and an inference-system $\mathcal{I}$, we have defined the formal-system $\mathcal{F}=(\mathcal{L},\mathcal{I},\mathcal{S})$. All the wffs that can also be marked as theorems using this formal-system $\mathcal{F}$ (i.e. all the wffs that can also be marked as theorems by the inference-rules of $\mathcal{I}$ starting from the axioms $abb$ and $ccc$ of $\mathcal{S}$) form the theory $\mathcal{T}$. In the image above, we suppose that all the wffs that can be marked as theorems starting from $\mathcal{S}=\{abb,ccc\}$ and using $\mathcal{I}$ are $bcc$ and $aac$, so the theory $\mathcal{T}$ defined by the formal-system $\mathcal{F}=(\mathcal{L},\mathcal{I},\mathcal{S})$ is formed by the four theorems $\{abb,ccc,bcc,aac\}$ (the blue area of the image).

Notation note: It is common when talking about formal-systems to refer to the action of marking a wff as a theorem $t$ following $\mathcal{I}$ and $\mathcal{A}$, as to prove the theorem $t$. So we often hear of a theory as “the collection of all the wffs that can be proven from the formal-system $\mathcal{F}$“.

zeroth-order-formal-system

Any formal-system $\mathcal{F}=(\mathcal{L},\mathcal{I},\mathcal{S})$ that uses as its formal-language $\mathcal{L}$ the propositional-formal-language is called a zeroth-order-formal-system. As we saw, in a formal-language a wff is a proposition. In a zeroth-order-formal-system a theorem will be a True proposition, and to prove a theorem will be to infer that it is True.

inference-rules

A zeroth-order-formal-system deals with propositions, and their truth-values, then the things to be inferred will be truth-values of propositions. For example, suppose we are told that the proposition $pANDq$ is a theorem (i.e. a True proposition). If we look at the definition, the only combination of truth-values of $p$ and $q$ for which it is True is both $p=T$ and $q=T$, so, if we are told that $pANDq$ is theorem, then we know that both $p$ and $q$ are theorems too (True propositions). This is an inference. We are told that $pANDq$ is a theorem (i.e. that is True), and nothing about the truth-values of the propositions $p$ and $q$, but this information is implicit in the logical-connective definition itself. This is, this information is not directly given to us, we are just told that $pANDq$ is a theorem, but we can “infer” that they are theorems too since the only combination of truth-values of $p$ and $q$ for which $pANDq$ is True is when both $p$ and $q$ are True. If we are told that a given collection of propositions $\mathcal{P}$ (known as premises) are theorems, and if for all cases for which these propositions are True, some proposition $p$ (called the conclusion) is also True, we say that we can infer from $\mathcal{P}$ (being theorems) that $p$ is also True. This is nothing more than what we have called an inference-rule and is symbolically represented as $\mathcal{P}\models p$. For the case of $pANDq$ this rule is called simplification and is represented as $pANDq\models p$. Note that we can also use simplification to infer $q$, i.e., $pANDq\models q$. Conversely, (and as an example of an inference-rule of more than one premise) we can be told that the two propositions $p$ and $q$ are premises (therefore theorems, therefore both True) and from that infer that $pANDq$ is True (note that again that for the only row where both $p=T$ and $q=T$, we have $pANDq=T$). This inference-rule represented as $p,q\models pANDq$ is called conjunction.

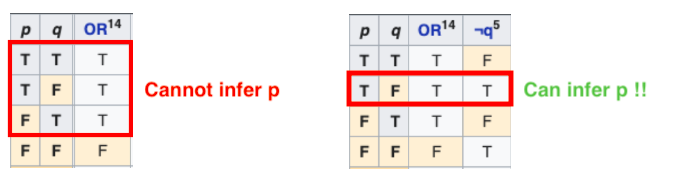

Note, however, that not from every theorem (or collection of them) we can infer something. For example, $pORq\models p$ is not an inference-rule, since if we are told that $pORq$ is a theorem, we have three possible combinations of values of $p$ and $q$ that makes it True, and in two $p$ is True, but in the other $p$ is False. If from a rule $\mathcal{P}\models p$ we can actually infer the conclusion $p$, we say that the rule is valid, if not (as in the case of $pORq\models p$) we called it a fallacy. A valid rule then is one in which is impossible for all the premises to be True while the conclusion is False. A sound rule is a rule that is valid and all its premises are True. However, if we add to $pORq$ the premise $\neg q$, the only combination where both are True is $q=F$ and $p=T$ so we then can actually infer $p$ as a theorem. Then $pORq\models p$ is a fallacy, but $pORq,\neg p\models q$ is an inference-rule, called disjunctive-syllogism. Note that we can also use the disjunctive-syllogism to infer $p$ by adding $\neg q$ as a premise (i.e. $pORq,\neg q\models p$).

Other very commonly used inference-rule in a zeroth-order-formal-system is $p\to q,p\models q$, known as modus-ponens. We can again, looking at the definitions, that for all cases for which the premises are True (just one in this case), $q$ is True. Suppose we are given $p\to q$ and $\neg q$ as premises. Using the contrapositive-law $p\to q⟺(\neg q)\to (\neg p)$ (that we introduce in the previous-entry) we have that $\neg q\to \neg p$ is a theorem. And from it and $\neg q$ we can infer $\neg p$ using modus-ponens ($\neg q\to \neg p,\neg q\models \neg p$). This inference-rule, represented as $p\to q,\neg q\models \neg p$, is called modus-tollens and is a variance of the modus-ponens using the contrapositive-law.

Note: Since if we are given two premises $p$,$q$ we can infer (using conjunction) that $pANDq$ is a theorem, and conversely, if we are given $pANDq$ as a single premise we can infer (via simplification) $p,q$ as two different premises. For this reason, in the collection of premises, $p,q$ or $pANDq$ are used interchangeably to state that both $p$ and $q$ are premises. For example, in some texts you can find the disjunctive-syllogism rule written as $(pORq)AND(\neg p)\models q$, the modus-ponens rule written as $(p\to q)ANDp\models q$, the modus-tollens rule as $(p\to q)AND\neg q\models \neg p$, etc.

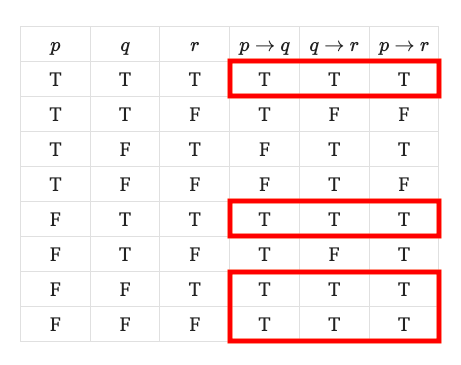

As a final example, and as an example of an inference-rule with three different atomic-propositions we’ll present the case of the inference-rule $p\to q,q\to r\models p\to r$ known as hypothetical-syllogism. Again, if you look in the next table, you’ll see that for all cases for which both $p\to q$ and $q\to r$ are True, the proposition $p\to r$ is also True. Therefore, from the propositions $p\to q$ and $q\to r$ we can actually infer $p\to r$, making the hypothetical-syllogism a valid inference-rule.

fallacies

As we saw, a rule from which we cannot actually infer the conclusion is called a fallacy. F.e., we saw that, unlike the disjunctive-syllogism $pORq,\neg p\models q$ that is a valid inference-rule, the rule $pORq\models q$ is a fallacy since there are cases of which $pORq$ is True that $q$ is False. Many fallacies receive a name, f.e. $pORq\models q$ is called the affirming-a-disjunct-fallacy. Unlike the modus-ponens ($p\to q,p\models q$), the rule $p\to q,q\models p$ is a fallacy (called the affirming-the-consequent-fallacy), since (as you can check in the following table) when $p\to q$ and $q$ are both True, $p$ could be False.

Other example of a common fallacy is $p\to q,\neg p\models \neg q$, known as the denying-the-antecedent-fallacy. Note that $p\to q$ is True when $\neg p$ is True (i.e., $p$ is False) for both values of $q$ (and therefore both values of $\neg q$).

examples

We saw that a zeroth-order-formal-system a formal-system $\mathcal{F}=(\mathcal{L},\mathcal{I},\mathcal{S})$ that uses the propositional-formal-language as its formal-language $\mathcal{L}$. Thus, the different types of zeroth-order formal systems are defined by different combinations of inference-system ($\mathcal{I}$) and axiomatic-system ($\mathcal{S}$). Now that we’ve explored some common inference-rules of a zeroth-order formal system, let’s examine a few concrete examples to illustrate how these systems are constructed and applied.

axiomatic-formal-systems

The first type of of zeroth-order-formal-system we’ll talk about is known as axiomatic since they all have an inference-system that contains just one inference-rule (the modus-ponens i.e. $p\to q,p\models q$), and therefore, their power comes from the intelligent choice of axioms for the axiomatic-system. The first system of this kind was formally described by Gottlob Fredge in his 1879 book called “Begriffsschrift” (for what is called Frege-axiomatic-system) and had the following six axioms:

• Axiom 1: $p\to (q\to p)$
• Axiom 2: $(p\to (q\to r))\to ((p\to q)\to (p\to r))$
• Axiom 3: $(p\to (q\to r))\to (q\to (p\to r))$
• Axiom 4: $(p\to q)\to (\neg q\to \neg p)$
• Axiom 5: $\neg \neg p\to p$
• Axiom 6: $p\to \neg \neg p$

Jan Łukasiewicz showed in 1930 that, in Frege-system, “the third axiom can be derived from the preceding two, and that the last three axioms can be replaced by the single one $(\neg p\to \neg q)\to (p\to q)$, reducing the number of axioms to just three, in the system known as Łukasiewicz-axiomatic-system :

• Axiom 1: $p\to (q\to p)$
• Axiom 2: $(p\to (q\to r))\to ((p\to q)\to (p\to r))$
• Axiom 3: $(\neg p\to \neg q)\to (q\to p)$

Finally, and to end a search of many years, in 1953, Carew Meredith showed that the number of axioms can be incredibly reduced to just one, obviously known as the Meredith-axiom.

• Axiom: $((((p\to q)\to (\neg r\to \neg s))\to r)\to t)\to ((t\to p)\to (s\to p))$ This axiom, allows to have a zeroth-order-formal-system (called the Meredith-axiomatic-system) that not only has an inference-system of a single inference-rule (the modus-ponens), but also an axiomatic-system of a single axiom (the Meredith-axiom).

Note: todo axiomatic-formal-systems using only NAND (list in this article) and Wolfram’s axiom

inference-formal-system

The other type of zeroth-order-formal-systems are known as inference-formal-systems (or formal-systems based on inference) since they take a different approach by eliminating axioms entirely and instead, relying purely on a rich inference-system. The best known consists of 11 inference-rules designed to mimic the natural reasoning processes of mathematicians. They are modus-ponens, disjunctive-syllogism, conjunction, and 8 more listed and explained here. By starting without axioms and building proofs step-by-step using these rules, this system provides a flexible framework for constructing proofs that feels more intuitive. This approach contrasts with the axiomatic-formal-systems, emphasizing process over initial assumptions.

first-order-formal-system

Any formal-system $\mathcal{F}=(\mathcal{L},\mathcal{I},\mathcal{S})$ that uses as its formal-language $\mathcal{L}$ the predicative-formal-language is called a first-order-formal-system.

En general un first-order-formal-system extends a zeroth-order-formal-system by adding machinery to handle predicates, quantifiers, and variables. El ejemplo más conocido y utilizado, llamado Hilbert-firsrt-order-formal-system extends an axiomatic-formal-system que vimos pueden ser reducidos a tan solo un axioma (the Meredith-axiom) by extending its propositional-formal-language to a predicative-formal-language with $\forall$ as the unique quantifier (remember that we can derive the rest from any other quantifier), and extending the axiomatic-system with the following three axioms:

Q5. $\forall x(\varphi )\to \varphi [x:=t]$ where $t$ may be substituted for $x$ in $\varphi$ Q6. $\forall x(\varphi \to \psi )\to (\forall x(\varphi )\to \forall x(\psi ))$ Q7. $\varphi \to \forall x(\varphi )$ where $x$ is not free in $\varphi$.

The wikipedia-article says also that we can, equivalently have the Hilbert-firsrt-order-formal-system by adding just the axioms Q5 to the axiomatic-system, but adding to the inference-system the predicative inference-rule known as universal-instantation que hace redundantes a Q6 y Q7.

todo investigar y explicar bien este último párrafo.

properties-of-formal-systems

As we saw, we say that we prove (inside a formal-system $\mathcal{F}=(\mathcal{L},\mathcal{I},\mathcal{S})$) a wff $\varphi$ of the formal-language $\mathcal{L}$ if we can mark it as a theorem applying inference-rules (of the inference-system $\mathcal{I}$) over axioms (of the axiomatic-system $\mathcal{S}$) or other theorems previously proved. We say that we disprove a wff $\varphi$ of $\mathcal{L}$ when we prove its negation $\neg \varphi$.

A formal-system is consistent if for every wff $\varphi$ in $\mathcal{L}$ we cannot both prove it and disprove it, i.e. if we cannot prove both $\varphi$ and its negation $\neg \varphi$ as theorems.

Note: In a not consistent formal-system there exists a wff $\varphi$ such that both $\varphi$ and $\neg \varphi$ are theorems, then we can prove as a theorem any wff (since if $\varphi \wedge \neg \varphi$ is a contradiction that let us prove any wff $\phi$ using the modus-tollens ($(\varphi \wedge \neg \varphi )\to \phi ,(\varphi \wedge \neg \varphi )\models \phi$)). So, by contraposition, a formal-system is consistent if it does not contain contradictions, or equivalently, if we cannot prove any wff.

A formal-system is complete if for every wff $\varphi$ in $\mathcal{L}$ we can prove it or disprove it.

A formal-system is decidable if for any wff $\varphi$ in $\mathcal{L}$ there exists an algorithm that can determine whether it is a theorem.

todo hablar antes de qué joraca es formalmente un algorithm
